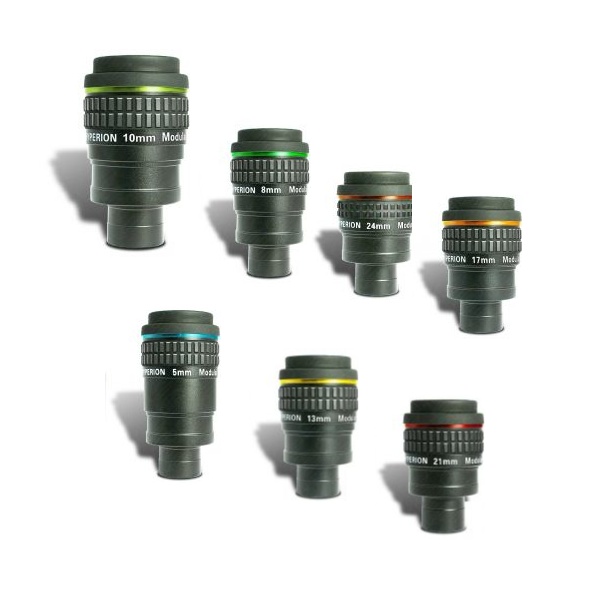

Baader HYPERION Eyepieces

Baader HYPERION Eyepieces
  Zoom
Our Price:  £100.00(Inc. 20% VAT)
+
Eyepiece Focal Length:





Model:  B2454605
Brand:  Baader Planetarium

Availability:



In stock, immediate despatch



Modular dual 31.7mm/50.8mm 68 degree widefield eyepieces that performs as well as eyepieces three times its price.

The Hyperion design has has both a 31.7mm (1 1/4") and 50.8mm (2") barrel for fitting into either size focuser or diagonal. Both barrel sizes have a safety groove for safe use in your telescope. Each Hyperion features Baader's PHANTOM-GROUP Multi-Coatings for maximum light transmission and the ultimate in image contrast. There are two photographic threads on each Hyperion, M43 and SP54. These threads are located under the rubber eye-cap, or rather beneath the thread protecting ring which is made of high-quality and aging-resistant silicone rubber.

A variety of focal lengths can be obtained from each Hyperion. A second focal length is easily acheived by removing the first group of lenses. Additional FL can then be acheived by purchasing a 14mm Fine Tuning Ring (FTR), 28mm FTR, combining the 14mm and 28mm FTR, and with 2" Baader Filter (height 8mm).

The Hyperion can be combined with a Baader adaptor ring to mount a camera directly onto the eyepiece. In addition, there are a large number of Baader adapting rings and fittings to make the Hyperion suitable for (almost) every task in astronomical - and nature - photography as a high quality projection optic or as a tele-extender.

Each Hyperion is supplied with a soft leather storage bag for safe keeping, and two dust caps for storing the eyepiece with either the rubber eyeguard either folded up or down!

The effective FL of the 5mm eyepiece is as follows:
  • With 14mm FTR: 4mm
  • With 28mm FTR: 3.2mm
  • Combined FTR: 2.6mm
  • 2" Baader filter: 4.3mm
  • Removing first group of lenses: 22.5mm

The effective FL of the 8mm eyepiece is as follows:

  • With 14mm FTR: 6mm
  • With 28mm FTR: 5mm
  • Combined FTR: 4.3mm
  • 2" Baader filter: 6.9mm
  • Removing first group of lenses: 21.8mm

The effective FL of the 10mm eyepiece is as follows:

  • With 14mm FTR: 8.4mm
  • With 28mm FTR: 7.1mm
  • Combined FTR: 6.1mm
  • 2" Baader filter: 9.1mm
  • Removing first group of lenses: 22.4mm

The effective FL of the 13mm eyepiece is as follows:

  • With 14mm FTR: 10.8mm
  • With 28mm FTR: 9.2mm
  • Combined FTR: 8.1mm
  • 2" Baader filter: 11.7mm
  • Removing first group of lenses: 22.9mm

The effective FL of the 17mm eyepiece is as follows:

  • With 14mm FTR: 13.1mm
  • With 28mm FTR: 10.8mm
  • Combined FTR: 9.2mm
  • 2" Baader filter: 14.6mm
  • Removing first group of lenses: 21.8mm

The effective FL of the 21mm eyepiece is as follows:

  • With 14mm FTR: 17.6mm
  • With 28mm FTR: 15.5mm
  • Combined FTR: 14mm
  • 2" Baader filter: 18.5mm
  • Removing first group of lenses: 32.2mm
