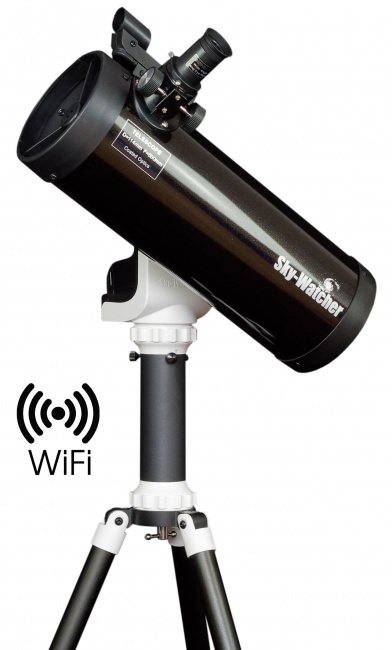

The highly portable Sky-Watcher SKYHAWK-1145PS (AZ-GTe), has been designed to be controlled wirelessly with your Smartphone or Tablet, using the free SynScan App for iOS or Android. The AZ-GTe mounting, with it's built-in WiFi module, creates it’s very own Wi-Fi network, so the mount can be used anywhere, without any reliance on other WiFi or mobile networks. After entering your coordinates into the App and following a simple alignment procedure, you are ready to explore the universe using the App’s intuitive touchscreen menu.
The AZ-GTe and SynScan App provides full computerised GO-TO control, allowing the telescope to be automatically slewed to any one of the objects in the App’s extensive database of 10,000+ celestial objects.
With an useful 114mm of light gathering aperture and a superb parabolic primary mirror, the SKYHAWK-1145PS is a highly capable all-rounder for the observation of the Moon, bright planets, nebulae, galaxies and star clusters.
(Please note: The AZ-GTe mount is identical to the AZ-GTi, except Freedom-Find™ dual-axis encoders are not present)
Android 11 notice from Sky-Watcher:
We have confirmed that the current version of SynScan App, SynScan Pro App and SAM Console App on the Google Play are not compatible with Android 11. We have finished the development of new version of these apps which can work with Android 11, but due to technical issues, we cannot release the updates on Google Play. Unfortunately, this situation might last several months.
Currently, only Google’s Pixel smart phone can run Android 11, other brands might start to provide Android 11 devices in one or two months. If you are planning to use Android 11 devices to run Sky-Watcher apps, please do the following:
1. Uninstall the SynScan app, SynScan Pro app or SAM Console app which are downloaded from Google Play.
2. Visit our website to download and install the latest version of the apps.
For SynScan app and SynScan Pro app click HERE
Form SAM Console app click HERE
3. Grant the app with the permission to access the smart phone’s location. Users have to do it manually.
Magnifications (with optics supplied): x20 & x50
Highest Practical Power (Potential): x228
Diameter of Primary Mirror: 114mm
Telescope Focal Length: 500mm (f/4.4)
Eyepieces Supplied (1.25"): 10mm & 25mm
Red Dot Finder
AZ-GTe WiFi Go-To Alt-Azimuth Mount (3/8" screw thread)
Controller: Free SynScan App for iOS and Android mobile device or Synscan Hand Controller (available separately)
SynScan App Database: Total 10,000+ Objects. Deep Sky Objects: 10759, including Messier, NGC, IC, Caldwell Catalogues, Named DSOs, Named Stars: 305, Double Stars: 55, Solar system objects: 7 planets, Sun , Moon. (Unlimited objects when working with a 3rd party planetarium software).
SynScan App Alignment Method: Brightest Star Alignment, North-Level Alignment
SynScan App's Other Features: Tonight's Best Sky Tour, Point and Go with a mobile device, Identification of Celestial Objects, Remote control over Internet, User defined objects, Pointing Accuracy Enhancement (PAE)
Pointing Accuracy: Up to 10 arc-minute (RMS)
Resolution: 2073600 Counts/Rev., 0.625 arc-second
Tracking Rates: Sidereal, Lunar, Solar, Alignment-Free Solar Tracking
Slewing Speeds: 0.5X, 1.0x, 8.0x, 16x, 32x, 64x, 128x, 400x, 800x
Tracking Mode: Dual Axis Tracking
Motor: DC Servo Motor, Gear Ratio 6480
45mm Sky-Watcher/Vixen type dovetail saddle
Interface: SynScan Hand Control Port, DSLR Shutter Release Port (optional cables available separately), Built-in Wi-Fi Module
Connectivity: ASCOM platform for Windows PC, Mobile planetarium App for iOS and Android ( SkySafari Plus/Pro, more are coming).
Network Protocol: UDP, Port 11880
Adjustable Aluminium Tripod with Accessory Tray
Height of Tripod/Mount (excl. OTA): 80.5cm - 152cm
Total Weight with Tripod: 6.65kg
Power Requirement: 8 AA Size Batteries (not supplied) or External Power Supply (DC 7.5~14V, 0.75A) Tip Positive.
Sky-Watcher 7Ah or 17Ah Power Tank Recommended.
