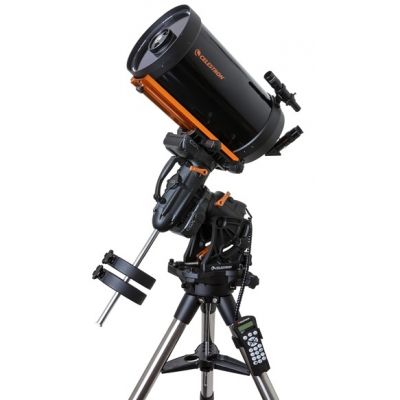

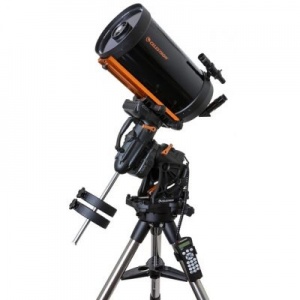

Celestron CGX Equatorial 9.25 Schmidt-Cassegrain Telescope

£4,399.00
(Inc. 20% VAT)
£4,399.99
Saving Of
£0.99
1 in stock, Shipped in 1-2 working days
+
Model
12051
Brand
Celestron
Description

The CGX 925 Schmidt-Cassegrain Telescope features Celestron's premium StarBright XLT coated optics and the all-new state of the art CGX computerized equatorial mount. The CGX 925 offers the middle ground for those looking to combine portability with high resolution.  This telescope is especially at home as a solid platform for long exposure photography with optional CCD cameras or photographic equipment.  With over 9 inches of aperture and our premium StarBright XLT coatings, the CGX 925 gives you over 1000 times the light gathering power than the unaided eye.

CGX Mount

Celestron's workhorse CGEM mount lineup has been the German Equatorial backbone for telescopes ranging from 6 to 11 inches of aperture. Since that time, many more astro-imagers and planetarium controlled setups have emerged as backyard telescope technology has evolved. Celestron's engineering team applied their years of experience designing German Equatorial mounts to the all-new CGX EQ, a culmination of all the advancements made to our technologies, value, and ease-of-use.

The new CGX was designed to better support your telescope for both visual and astro-imaging pursuits.  Key design goals included a lower profile EQ head, which provides a more compact and therefore more stable setup; a better drive system; remote operation-friendly with home and limit optical sensors; easier polar alignment adjustments; and better cable management. In addition to that, we've made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and transport. The CGX is our new Equatorial backbone to support a wide range of telescopes.

Computerized Mount Features:

  • All-new design. Sturdier and more rigid with quicker dampening time
  • Increased load capacity to 55 lbs.
  • Improved motors provide more torque, better slewing and tracking under heavy loads
  • Heavy Duty belt-drive system minimizes backlash while providing smooth motor operation under heavy loads
  • Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
  • Internal cabling for worry-free remote operation. Power input and accessory ports remain stationary while the mount slews to avoid snags
  • Internal hard stops for both axes prevents cable tension and tripod strike
  • Internal optical sensors on both axes for simple and safe remote operation
  • Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
  • Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe
  • Brand new control software developed in conjunction with PlaneWave Instruments for professional level control operation and imaging
  • Software includes multi-point mount modeling for extremely precise pointing accuracy and many more additional features for remote astroimaging
  • Wider tripod stance for improved stability
  • Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3¶§-65¶§ latitude range
  • Dual-fit CG-5/Vixen and CGE/Losmandy dovetail saddle

Improved tripod includes:

  • 2" steel legs with height index marks for quick leveling
  • "Jack of all trays" can hold three 1.25" eyepieces, two 2" eyepieces, your smartphone, or other accessories
  • +20¶§ of additional tracking past the meridian on either side
  • Tripod legs can be collapsed with accessory tray installed for faster setup and transport

Improved ergonomics:

  • Two handles for easy pickup and transport
  • All-new ergonomically designed dovetail clamping knobs
  • Innovative and improved polar alignment adjustment system
  • All-new ergonomic latitude adjuster for smooth and easy adjustment under full loads
  • Optional add-on polar axis finderscope - coming soon

Electronics:

  • All-new NexStar+ hand control with USB port
  • Two AUX accessory ports to support wireless/WiFi alignment and operation with StarSense AutoAlign and SkyPortal WiFi Module accessories (sold separately)
  • USB 2.0 port, used to connect directly to PC with included software
  • Autoguider port
  • PPEC ready
  • Threaded 12VDC power input barrel connector
  • Internal Real Time Clock (keeps time and site information saved)
Specifications

Optical Tube

  • Optical Design    Schmidt-Cassegrain
  • Aperture (mm)    234.95 mm (9.25 in)
  • Focal Length    2350 mm (93 in)
  • Focal Ratio    10
  • Focal Length of Eyepiece 1 (mm)    25 mm (0.98 in)
  • Magnification of Eyepiece 1    94x
  • Finderscope    6x30
  • Star Diagonal    1.25
  • Optical Tube    Aluminum
  • Highest Useful Magnification    555x
  • Lowest Useful Magnification    34x
  • Limiting Stellar Magnitude    14.4
  • Resolution (Rayleigh)    0.59 arc seconds
  • Resolution (Dawes)    0.49 arc seconds
  • Light Gathering Power (Compared to human eye)    1127x
  • Secondary Mirror Obstruction    3.35 in (85 mm)
  • Secondary Mirror Obstruction by Diameter    36%
  • Secondary Mirror Obstruction by Diameter    13%
  • Optical Coatings    StarBright XLT
  • Optical Tube Length    22 in (559 mm)
  • Optical Tube Weight    20 lbs. (9.07 kg)
  • Dovetail Compatibility    CGE Mount

Mount

  • Mount    German Equatorial Mount
  • Instrument load capacity    55lbs
  • Tripod height adjustment range    47.25" to 77.5" including EQ headA
  • Tripod leg diameter    2"
  • Latitude adjustment range    3¶§-65¶§
  • Tripod Weight    19.2 lbs.
  • EQ Head Weight    44 lbs
  • Max Slew Speed    5¶§/second (4¶§/second is default)
  • Tracking Rates    Sidereal, Solar and Lunar
  • Number of Auxiliary ports (for hand control and accessories)    2
  • Autoguide Port    Yes
  • USB Port    Yes
  • Software    New telescope control PC software
  • Included Items
  • CGX Equatorial Head
  • CGX Tripod
  • Accessory Tray
  • 2 x 11 lbs counterweight
  • NexStar+ Hand Control
  • DC Power Cable (plugs into cigarette lighter socket)
