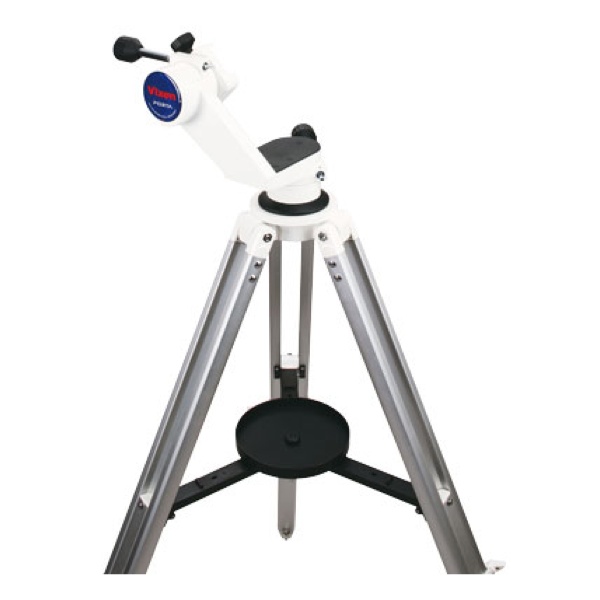

Vixen Porta II ALT-AZIMUTH Mount

(Inc. 20% VAT)
Saving Of
In stock, Shipped in 1-2 working days
Mount Type
AltAzimuth Mount

Vixen Porta II ALT-AZIMUTH Mount is designed to deliver quick and precise adjustments in vertical and horizontal directions by hand. Includes fine adjustment handles for locating and tracking celestial objects. Dovetail attachment system for maximum compatability with a wide range of optical tubes. Supplied with removable tripod for quick and easy set-up.

Product features:

  • Easy adjustment
    The optical tube can be moved freely by hand and friction holds its position anywhere you stop it. This allows you to quickly and easily point the telescope at celestial objects you wish to view.
  • Portability
    The mount can be detached from the tripod by removing a single screw making it very easy to pack and transport.
  • Simple to use
    The Porta II adjustment system offers full circle slow motion movement. Handle positions of both altitude and azimuth slow motion controls can be altered in 45˚ increments. This allows the user to set the handles for a comfortable viewing position whatever size optical tube is used.
  • Accessory tray
    The mount is supplied with a circular accessory tray for holding eyepieces and small photographic accessories.
  • Onboard adjustment tools
    Tools to adjust the tension of the friction system are housed on the mount. They are securely stored within the mount head but are quickly accessible.

Sky at Night Review - 93%

Specifications  Porta II Mount
Mount    Altazimuth Mount
Vertical and horizontal slow motion   120-tooth wheel gears whole-circle movement
Optical tube attachment  Dovetail plate
Maximum loading weigh  About 5kg (11lb)
Weight  5.7kg (12.5lb) including tripod
Tripod    Aluminium 2-section adjustable tripod, legs adjustable from 90cm to 130cm in length
