Please see Technical Specifications for more detail about each part!
The telescope-side of the UFC-base carries a receptor with 6 clamp screws in 60“_ spacings, to mount all the Baader-proprietory S 70-dovetail-adapters and spacers. A number of rigid UFC-S 70 spacer tubes is available in 5/15/40 mm length , as well as an ultra-stable S 70 VARI-LOCK spacer, engraved with Millimeter scale and being seamlessly adjustable from 15 to 20 mm. These four spacers will allow precise adaption with almost any backfocus situation, for both - back and prime focus - instrument configurations. Please accept the six tiny set screws, they are dearly necessary at times, when correct spacing becomes difficult. Each joint must be able to rotate, while requiring only a minimum of optical length.
Another set of telescope-adapters, with the male S70 dovetail facing the camera-side, completes the assortment, enabling the user to mount the UFC-assy onto almost any telescope firmly and flexure free. For the RASA-adaptation we even mill this RASA/S70 adapter plate from stainless steel, in order to provide the necessary stiffness while retaining the extremely thin flange tolerances required for the RASA-design.

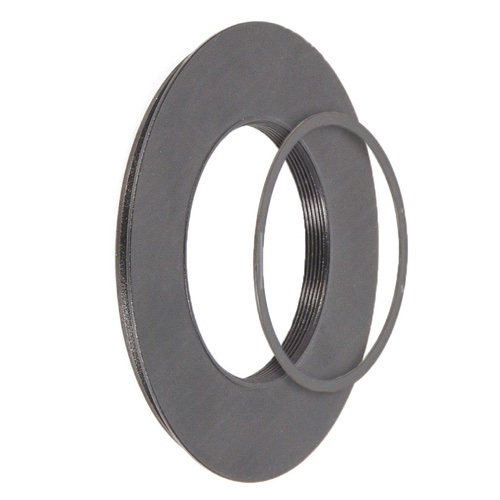

UFC S70 / T-2 Adapter, T-2 (f) thread facing telescope w/S70 Dovetail
UFC S70 / M48 Adapter, (optical height: 1 mm) M48 (f) thread facing telescope w/S70 Dovetail
UFC S70 / 2" Adapter, (optical height: 1 mm) 2" SC thread (f) facing telescope w/S70 Dovetail
UFC S70 / SP54 (m) Telescope-Adapter (optical height: 1 mm) for adapting UFC-base onto camera lenses (requires Baader Hyperion lens adapter rings - see system drawing PDF below)
UFC S70 / M68 Adapter, (optical height: 1 mm) M68 (m) thread facing telescope w/S70 Dovetail
UFC S70 / C8 Hyperstar / SC / HD Adapter with S70 Dovetail (optical height: 3 mm)
UFC S70 / C11 / C9.25 Hyperstar / SC /HD Adapter with S70 Dovetail (optical height: 4.1 mm)
UFC S70 / C14 Hyperstar / SC/ HD Adapter with S70 Dovetail (optical height: 8.3 mm)
UFC S70 / RASA 8" Telescope-Adapter (optical height: 1.4 mm)
UFC S70 / 11"/ 14" RASA Adapter, RASA Plate facing telescope w/S70 Dovetail (optical height: 3 mm)
For any telescope, for any camera - just replace the corresponding adapters on either side of the filter chamber when you change telescope or camera and want to keep on using your trusted set of filters.
As added benefit any camera lens can be used with the UFC. In this case, the UFC-Base will be fastened in front of the camera-lens with adding both the S70/SP54 adapter #2459134 and the retaining flange #2459121, as well as one of the many step-rings of the Hyperion-ring-system (#2958028 - 2958082) to be found here. Note that filters ought to be mounted in reverse order when using the UFC-filter changer in front of camera lenses.
