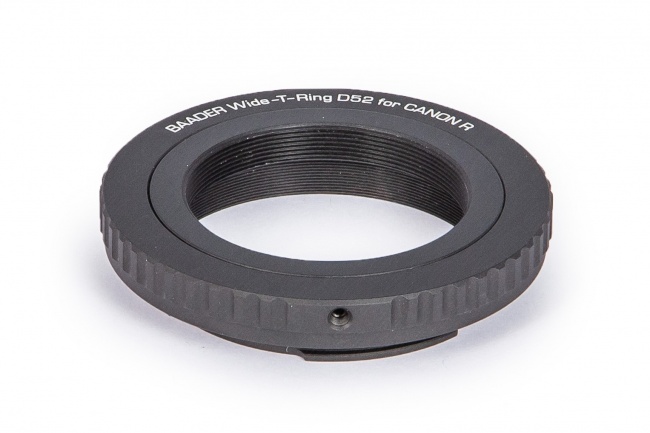

Baader Wide T-Ring Adapter

General Details:

• All Baader Wide-T-rings have an S52 dovetail in addition to the inserted T-2 ring. This allows the T-ring to be modified to an M48 female thread using the S52 / M48 adapter #2958552, or to use the S52 barrel #2958551 without the T-2 reduction. With the S52 / M68 adapter # 2458252, the Wide-T-Ring can be directly attached to an M68 male thread to securely fasten your camera to the widest possible aperture.
• All Baader Wide T-rings can be directly adapted to an UFC (Universal Filter Changer) with the optional Baader UFC S52 dovetail camera-adapter (#2459119), in order to change different filter sizes directly in front of the camera sensor.
• Furthermore, the illumination of the camera chips improved significantly, mainly because of the larger clear aperture.
• Telescope side: S52 dovetail clamp incl. S52/T-2 internal thread with 0.75mm pitch

Specifications:

• Optical Lenth (MM): 8,3
• Camera Adaptable: Nikon Z Bajonett and Cannon R Bajonett
• Inner Diameter / Clear Aperture (MM): 41mm (T-2) / 49,3mm
• Outer Diameter: 66.5mm
• Inner Connection (Lens Sided): S52, T-2 (M42 x 0,75)
• Outer Connection (Eyepiece/-Camera-Sided): Bayonet
• Compatible Brands: Astro T-2, Baader Planetarium, Other
• Type Of Adapter: Camera Adapter
