- Fits the pre-drilled holes in the front and rear cells of current 8″/9.25″/11” Schmidt-Cassegrain and EdgeHD Optical tubes
- Aluminium bar with Celestron orange anodising provides a sturdy mounting platform.
- Easy to install and comes complete with all necessary hardware

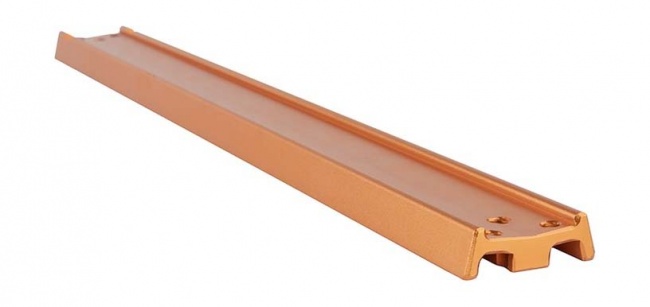

This dovetail bar kit allows you to replace the wider CGE dovetail bar found on most Celestron 8-11” Schmidt-Cassegrain and 8-11” EdgeHD optical tubes with a narrow dovetail, allowing them to be used on mounts that require the narrower CG-5 dovetail bars, such as Advanced VX mount or other similar mounts.
Specifications:
| Length: | 13″ (330.2mm) x 1.7″ (43.18mm) / 17″ (431.8mm) x 1.7″ (43.18mm) / 17.5″ (444.5mm) x 1.7″ (43.18mm) |
| Weight: | 11 oz (311.8 g) / 13 oz (368.5 g) / 15 oz (425.2 g) |
| Optical Tube Compatibility: | Current Celestron 8-11″ Schmidt-Cassegrain and 8-11″ EdgeHD optical tubes with the wide CGE bar |
| Mount Compatibility: | CG-5 style dovetail bars |
