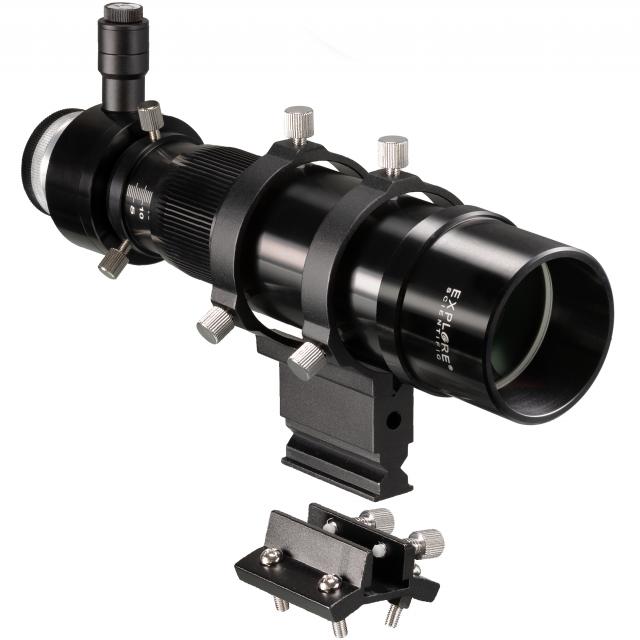

Explore Scientific 8x50 Finder and Guider Scope with Helical Focuser, 1.25inch and T2 connection

£169.00
(Inc. 20% VAT)
2 in stock, Shipped in 1-2 working days
+
Model
620170
Brand
Explore Scientific
Description

Excellent 8x50 viewfinder telescope with removable eyepiece unit and illuminated crosshairs with precise helical focuser, 1.25 inch and T2 connection for autoguiding

  • Universal 50mm viewfinder and guide telescope
  • Removable eyepiece unit with illuminated crosshair
  • Compact guiding unit for autoguiding with helical focus
  • Camera mounting via 1.25 inch plug connection or T2 thread
  • Backfocus is approx. 22mm behind the T2 thread
  • Very large field of view FOV of 6.96 degrees
  • Objective focal length: 220mm , focusing distance: 28mm
  • FMC multi-coated lens surfaces - bright image field
  • Separate focusing for field of view and crosshairs
  • Suitable for EXPLORE SCIENTIFIC, BRESSER MESSIER etc.
Universal 50mm viewfinder and guide telescope with a focal length of 220mm
Excellent 8x50 viewfinder telescope with removable eyepiece unit and crosshairs with adjustable red illumination. The precise helical focuser and the 1.25 inch /31.7mm plug-in connection, as well as the T2 camera connection thread (M42x0.75mm), allow the autoguiding required for long time exposure to obtain a point-shaped star image. It can also be used as a mini travel telescope.

High quality 8x50 viewfinder telescope with adjustable crosshair illumination
Image sharpness and viewing characteristics lift this viewfinder well above the level of the usual 8x50 viewfinder scopes. The visible image is bright and crisply sharp. Furthermore, this viewfinder has a very large field of view (FOV) of 6.96 degrees. This makes finding and adjusting objects much easier. The existing scale markings (pitch=1 degree) on the crosshairs are a good reference for estimating distances, and the open centre markings also make it easier to centre objects precisely. All lens surfaces are protected against weathering by multi-coating and guarantee a bright viewfinder image due to the high light transmission values. The adjustable red LED illumination unit is powered by two LR41 coin batteries. The main lens and the crosshairs can be focused independently of each other, giving you perfect focus for your eyes.

Compact tracking unit for autoguiding
One of the main applications for this telescope is the so-called autoguiding. Here the usually larger photo-taking optics are actively corrected by a smaller guiding telescope with a second tracking camera. This means that the mechanical fluctuations in the tracking accuracy, which are present in all astronomical telescope mounts, are measured by the tracking camera and compensated accordingly. This is necessary in order to obtain a point-shaped star image on the astrophotos during long time exposures and to avoid unwanted star trails. For this purpose, the guiding telescope is inserted into the existing viewfinder shoe of the photo-taking optics and aligned parallel. If the existing viewfinder shoe is not compatible, a suitable viewfinder shoe is also included. With the 1.25 inch / 31,7mm plug connection at the rear end or via T2 thread connection (M42x0,75mm), a tracking camera can be mounted afterwards. This is held securely by a brass ring clamp and 3 clamping screws. Please note the required back focus for your tracking camera. The focal plane (backfocus) is approx. 22mm behind the T2 thread. The sensitive focusing on the guiding star is done by a large knurled wheel of the mechanically precise manufactured helical focuser. For easy reproduction of the point of focus, this has a white millimetre scale from 0 to 28mm, which is attached by laser engraving. After the tracking camera has been connected directly or via computer to the telescope mount and the necessary basic settings have been made, the first astrophotos with long time exposure can be taken.

Use as mini travel telescope
This viewfinder and guide telescope can also be used quite simply as a mini travel telescope. With the optional eyepieces, a magnification of 8x to 40x can be achieved. Nearly all eyepieces with a focal length of 5 to 26mm and 1.25 inch/31.7mm plug connection are suitable. Especially recommended are the EXPLORE SCIENTIFIC eyepieces of the 52 degree (Art. 02195xx) and 62 degree (02196xx) LER series. Note: Only straight view use is possible.

Metal viewfinder holder and viewfinder shoe
The mount of this viewfinder and guide telescope is completely made of aluminium and is a stable base. The viewfinder mount is suitable for many common types of telescopes, such as EXPLORE SCIENTIFIC, BRESSER MESSIER etc. If the existing viewfinder shoe is not compatible, a matching viewfinder shoe is also included. This can be attached to the telescopic tube by means of four M5 screws. The bore distances of the viewfinder shoe are 31.7mm on the longitudinal and transverse axis. The six large adjustment screws with non-slip knurling make it easy to align the viewfinder, even with clammy fingers. All adjusting and clamping screws have plastic tips that effectively prevent the viewfinder housing and viewfinder mount from being scratched.


FEATURES
  • Excellent 8x50 viewfinder and guiding telescope
  • Can also be used as mini travel telescope
  • Perfect image sharpness and good viewing comfort
  • FMC Multi-coated lens surfaces
  • Lens focal length: 220mm
  • Max. possible camera weight: 550g
  • Removable eyepiece/cross hair unit
  • Camera connection via 1.25 inch / 31.7mm plug connection or T2 thread
  • T2 thread: M42 x 0,75mm
  • Precise helical focuser for focusing the visible image
  • Focuser travel range: 28mm
  • Close focus distance: 3 m
  • Laser engraved millimetre scale from 0 to 28mm on the focuser
  • Focal plane (backfocus) is approx. 22mm behind the T2 thread
  • Separate focusing of the crosshair at the eyepiece
  • Very large field of view FOV of 6.96 degrees
  • With adjustable red cross-hair iillumination
  • Scale markings crosshair with 1.0 degree graduation
  • Power supply of illumination unit: coin battery type LR41 (2pcs)
  • Brass ring clamp and 3 clamping screws on the 1.25 inch plug connection
  • With optional eyepieces magnifications from 8x to 40x can be achieved
  • Suitable are almost all eyepieces with 1.25 inch/31,7mm shaft
  • Mounting of the viewfinder telescope is completely made of aluminium
  • Viewfinder mount with 6 large adjustment screws with knurled head for easy grip
  • Finder shoe suitable for EXPLORE SCIENTIFIC, BRESSER MESSIER etc.
  • Additionally a suitable viewfinder shoe is included
  • Bore distances of the viewfinder shoe are 31.7mm on the longitudinal and transverse axis
  • Adjusting and clamping screws have plastic tips

SCOPE OF DELIVERY
  • 8x50 viewfinder/guiding telescope
  • Eyepiece unit with crosshair
  • Crosshair illumination unit incl. batteries
  • Viewfinder holder with viewfinder shoe
  • Instruction manual

Technical Data
  • GENERAL TECHNICAL DATA
  • Colour black
  • Material Aluminium
  • Extended warranty 10 years
  • DIMENSIONS & WEIGHTS
  • Total length 250 mm
  • Total width 140 mm
  • Total height 80 mm
  • Net Weight total (incl. accessories) 800 g
