H-alpha Solar Filters
With the H-alpha filters from Lunt Solar Systems you can upgrade normal astronomical telescopes for observing the sun during the daylight. The systems includes an Etalon filter for front mounting on the telescope and a blocking filter for the focuser. There is a large assortment of adapter plates for different telescopes available for the front mounting of the H-alpha filter. The blocking filters are installed in star diagonals, available alternatively for 1.25” or 2” focuser. These star diagonals are equipped with a reception for 1.25” eyepieces and a T2-connection for cameras on the eyepiece side. Which blocking filter size is the right one depends on the focal length of your telescope and the planned application. The B600 could be used visual at telescopes up to 540 mm focal length, the B1200 up to 1080 mm, the B1800 up to 1620 mm, and the B3400 up to 2880 mm focal length. If you want to image the sun, it will be better to use the next larger blocking filter.

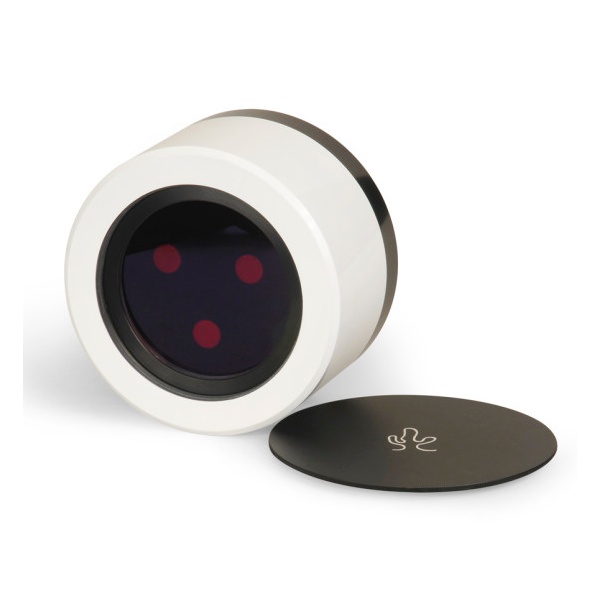

The LS100 Hydrogen-alpha filter system with 100mm aperture integrally tuned etalon for use on any refractor and many other telescopes. Because the LS100 has an estimated bandwidth of <0.7 Angstrom it is capable to providing high contrast views of both surface and edge detail.
Delivered in the Box:
- LS100FHa Main Filter
- Transport case
- Corresponding Blocking Filter (or no filter for option without Blocking Filter)
Note: Option without Blocking Filter! Only for use as double-stack filter, or together with a additional available blocking filter. If the filter is used only single stacked together with a optional blocking filter, then the bandwidth is <0.75 Angstrom.
- Aperture: 100 mm
- Bandwidth: <0.7 Angstrom
- Tuning: tiltable Etalon
- Housing diameter: 162 mm
- Length: 101 mm
- Front thread: M120x1.5 female thread
- Rear thread: M120x1.5 male thread
The blocking filters are installed in star diagonals, available alternatively for 1.25” or 2” focuser. The B600 could be used visual at telescopes up to 540 mm focal length, the B1200 up to 1080 mm, the B1800 up to 1620 mm, and the B3400 up to 2880 mm focal length.
