The much anticipated Sky-Watcher AZ4 Alt-Azimuth mount is set to be a hit with astronomers and terrestrial observers alike. The design features separate clutches on both the Altitude and Azimuth axes and a panning arm, which can be fixed in two separate positions. The movements are buttery-smooth and telescopes can be manipulated with effortless precision. Telescope OTA’s attach to the mount via a standard Sky-Watcher dovetail bar. Also supplied with this mount is an L-bracket which allows the easy attachment of a spotting scope or camera. With 1.75” stainless steel legs for maximum strength and stability.
Available in two versions:
1) With lightweight aluminium legs for optimum portability

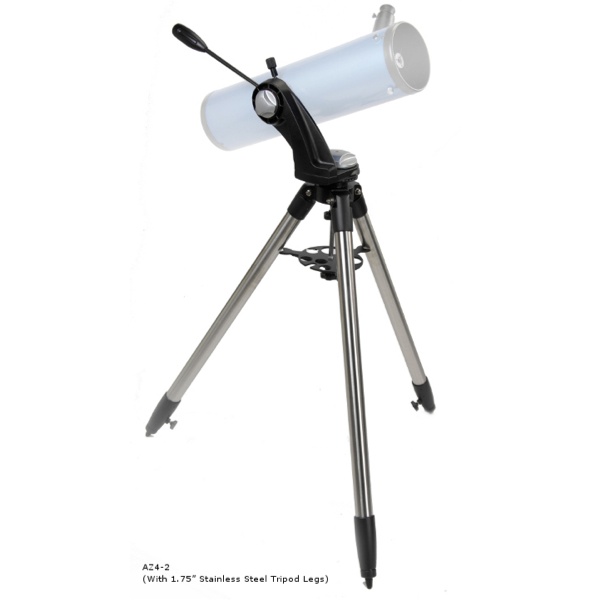

2) With 1.75” stainless steel legs for maximum strength and stability. Maximum recommended payload: Sky-Watcher D150/F1200 Reflector (Explorer-150PL)
Mount type: Single-fork Alt-Azimuth
Aluminium tripod model:
Height to altitude axis: 91–142cm
Weight: 5.4kg
Stainless steel tripod model:
Height to altitude axis: 103–135cm
Weight: 8.1kg
