Sky-Watcher AZ5 Deluxe Alt-Aziumth Mount

(Inc. 20% VAT)
Saving Of
Choose Package
In stock, Shipped in 1-2 working days

In stock!

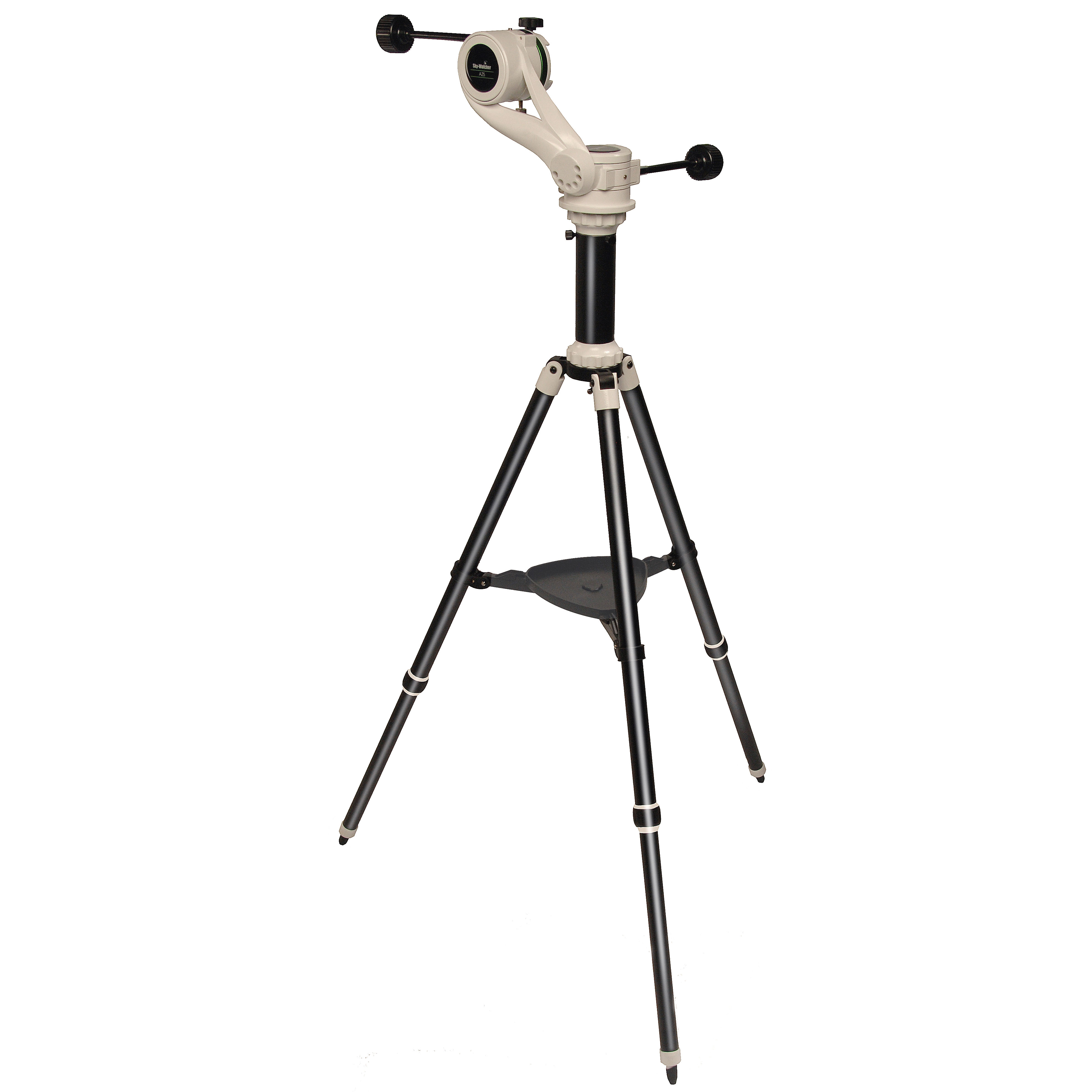

Ideal No Fuss, Grab-and-Go Telescope Mount for Easy Visual Astronomy as well as Daytime Terrestrial Observations! The elegant and well engineered Sky-Watcher AZ5 is a lightweight, highly portable Alt-Azimuth mount constructed from cast aluminium, designed to attach small telescopes up to 5kg in weight, fitted with a 45mm dovetail bar. The aluminium telescopic tripod legs can be extended and clamped in any position using the integral leg locks. Supplied with two flexible slow-motion cables, one for vertical and one for horizontal smooth fine motion control.  The mount can also be moved manually around each axis, for rapid panning and elevation adjustments. Accurately tracks distant moving objects with ease. A superb grab-and-go mounting suitable for both terrestrial observations and astronomical viewing.

Extension tube:

Constructed from cast aluminium. 215mm overall length. Base and top platform diameter 70mm. Female 3/8" thread on base. Male threaded 3/8" screw connector on top platform (top platform separable from main body).


    Helical Worm Gear Drive: 96 Teeth Alt & AZ Axes
    Mount Rotation Angle (Continuous): 360 (Azimuth), -50 to + 90 (Altitude)
    Payload Capacity: 5kg
    Two-Position Adjustable Altitude Fork Arm
    45mm Sky-Watcher/Vixen Dovetail Saddle
    2 x Flexible Slow-Motion Axis Drive Cables
    21.5cm Extension Tube
    3/8" Threaded Connections
    Extendable Aluminium Tripod with Accessory Tray

    Height of Tripod/Mount (excl. OTA): 86.5cm - 158cm
    Total Overall Weight: 4.9kg

What's in the Box
