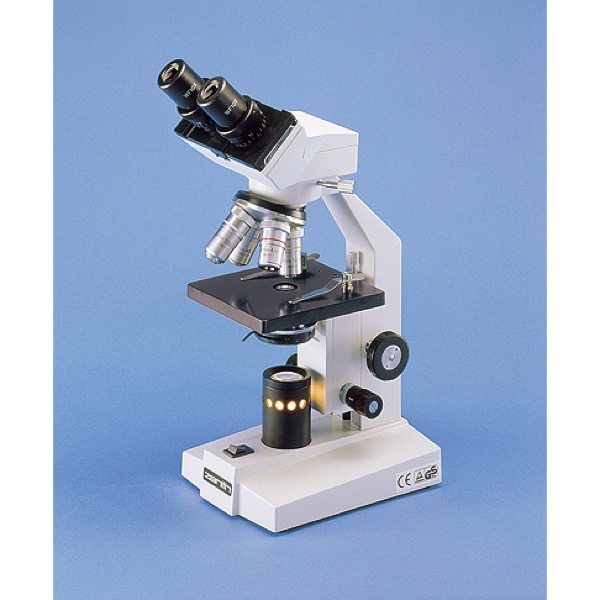

Zenith BM-100FL Binocular College Microscope

A high quality binocular microscope designed to meet the needs of the more advanced biology student at an economical price. Combines excellent optical performance and a robust, reliable ergonomic design. Anti-tamper safety features include locked on stage clips, slip clutch on the coarse focusing movement and an adjustable focus stop.

Standard Specification

• Magnification Range x40, x100, x400,1000
• DIN Achromatic Objectives x4 (0.10), x10 (0.25), x40R (0.65),100R (1.25) oil immersion (R=retractable)
• Paired x10 widefield eyepiece with pointer (18mm field)
• ABBE Condenser (N.A. 1.25) in spiral focusing mount with iris diaphragm
• Quadruple Objective Turret with positive click stops
• Built in 230v 20w illumination (colour corrected with daylight blue filter)
• Separate smooth action Coarse & Fine Focusing controls
• Dioptric adjustment provided on both eyepiece tubes
• Binocular head inclined 45 degrees and rotatable through 360 degrees for conveneint viewing
• Full Inter-pupillary adjustment
• Permanently horizontal stage
• Supplied in Polystyrene Pack with Dust Cover
• Dimensions 175x130x350mm
• Weight 4kg
