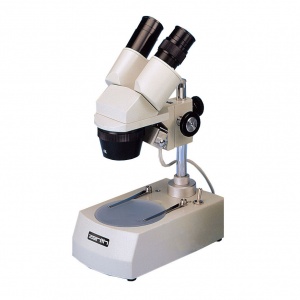

Zenith STM-40 X20/X40 Illuminated Stereoscopic Microscope

Zenith STM-40 X20/X40 Illuminated Stereoscopic Microscope
  Zoom
Our Price:  £149.00(Inc. 20% VAT)
+

Model:  60025
Brand:  Zenith

Availability



In stock, Shipped in 1-2 working days



A versatile instrument of robust metal construction and excellent optical performance ideal for use in schools, colleges, and field study centres as well as having wide applications in industry. Anti-tamper safety features include locked on eyepieces and stage clips and a slip clutch on the focus movement.

Technical Specifications:

  • Dual Magnification x20, x40
  • x10 widefield eyepieces (with rubber eyecups)
  • Parfocal achromatic objective pairs x2 & x4 on revolving turret
  • 12v 10w top illumination (independent or simultaneous)
  • Working distance 45mm
  • Field of view 5-10mm
  • Black/White reversible and frosted glass stage plates provided
  • Binocular head inclined 45degreees for comfortable viewing
  • Full inter-pupillary and dioptric adjustment provided
  • Rack and pinion focusing
  • Dust cover
  • Supplied in polystyrene pack
  • Dimensions 190x117x310mm
  • Weight 2.8kg
