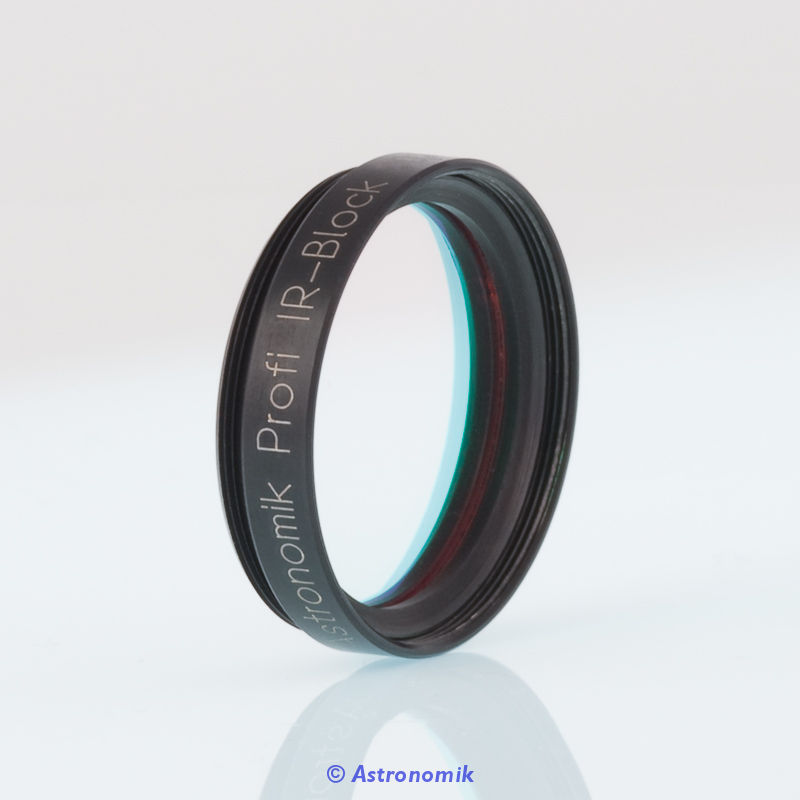

Astronomik IR-Block Filter

£53.00
(Inc. 20% VAT)
Choose Filter Size
+
Model
10230125
Brand
Astronomik
Description

Infrared-blocking filter for digital photography.

The filter should be used as a standard at all imaging applications with sensors having a low sensitivity in the UV, e.g. Webcam, DSI and LPI from Meade or most video systems. Put this filter in front of your camera and you will get rid of all problems caused by IR like bright halos around all objects and a very soft overall image.

If you compare the transmission data of the Astronomik IR-blocker with the data from other sources, you will notice, that most other manufacturers would call this already an UV-IR blocker. The filter WE call an "UV-IR blocker" is superior to any UV-IR blocker from other manufacturers worldwide!

The IR-blocker is optimized for systems with focal ratios between f/0.5 and f/50. The typical transmission is higher than 99%.

Main use

The IR Blocker gives you a perfect parfocal filter. It blocks all IR light without modifying the visual part of the spectrum. It is also great as a dust protection for your telescope and camera.

Other uses

  •     As a dust protection of Schmidt-Cassegrain, Schmidt-Newton or Maksutov system or as a dust protection in front of DSLR camera.
  •     As an alternative instead of the UV-IR-Blocker if your camera has a low sensitivity at short wavelengths.
  •     As an alternative instead of the MC Clear if your system has any refracting elements

Alternatives

You should think about using the UV-IR blocker if your camera has a high sensitivity at short wavelengths. Think about using the MC Clear glass if you have a system without any refracting elements. If you do color imaging from light polluted places, please think about using the CLS CCD filter for the luminance data instead!

Specifications

Technical Data

  • Parfocal with other Astronomik filters
  • Glass thickness: 1mm
  • Completely resistant against high humidity, scratches and aging effects
  • Diffraction limited, the filter will not reduce the optical performance of your telescope!
  • Astronomik filters are delivered in a high-quality, long lasting, filter box
  • Since 2008 we do ship filters with a completely new design. Any kind of halo or strange reflection is a matter of past

Suitability

  • Visual observation (dark skies): It depends, for dust protection only
  • Visual observation (urban skies): It depends, for dust protection only
  • Film photography: It depends, for dust protection only
  • CCD photography: Very good, if used with optics which contain refracting elements
  • DSLR photography (original): It depends, for dust protection only
  • DSLR photography (astro modified): It depends, for dust protection only
  • DSLR photography (MC modified): Very good, if used with optics which contain refracting elements
  • Webcam / Video (Planets): Very good, if used with optics which contain refracting elements
  • Webcam / Video (Deep Sky): Very good, if used with optics which contain refracting elements



What's in the Box
