Baader 2'' / T-2 (M48) Nosepiece with Safety Kerfs

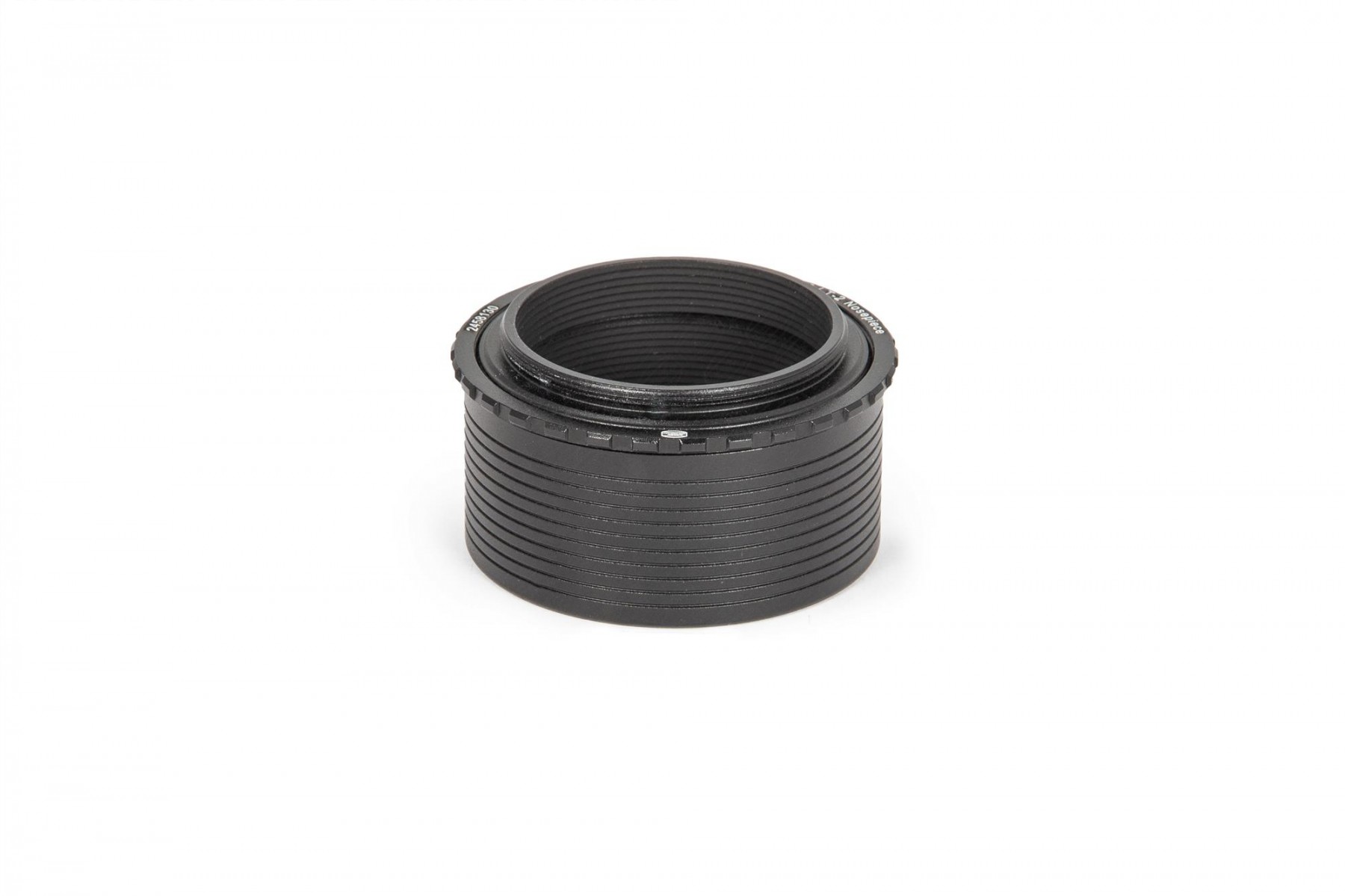

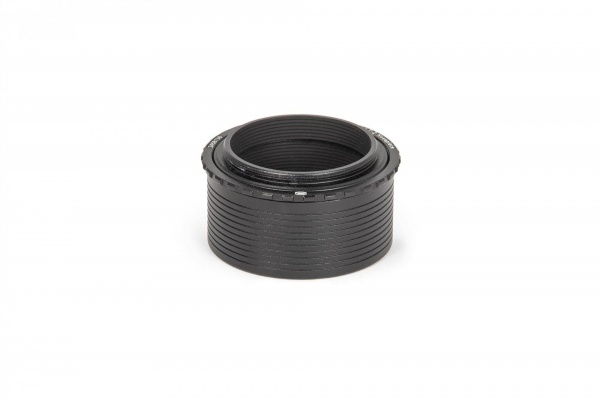

Baader 2" / T-2 (M48) Nosepiece with Safety Kerfs

£39.00
(Inc. 20% VAT)
In stock, Shipped in 1-2 working days
–
+
Model
2458130
Brand
Baader Planetarium
Description

Modern cameras are usually characterised by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3 mm standard.

  • Nosepiece with Baader proprietory Safety Kerfs grooves so that even the heaviest accessories cannot fall to the ground
  • Equipped with only 3 mm long T-2 thread
  • Eyepiece-/camera side with male T-2 and M48 threads
  • Telescope side with 2" outer diameter and 48mm filter thread for 2" filters
  • Effective optical length 3 mm
Specifications

MANUFACTURER

Baader Planetarium

SKU (#)

2458130

EAN CODE

4047825045621

NET WEIGHT (KG)

0.02

OPTICAL LENGTH (MM)

3

INNER DIAMETER / CLEAR APERTURE (MM)

37,5 mm

OUTER DIAMETER

54 mm

INNER CONNECTION (LENS SIDED)

Thread

OUTER CONNECTION (LENS SIDED)

Barrel, 2" (50,8mm)

INNER CONNECTION (EYEPIECE/-CAMERA-SIDED)

Thread

OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED)

Thread, T-2 (M42 x 0,75), M48

COMPATIBLE BRANDS

Astro T-2, Baader Planetarium, Celestron

TYPE OF ADAPTER

Barrel, Expanding piece, Filter holder
