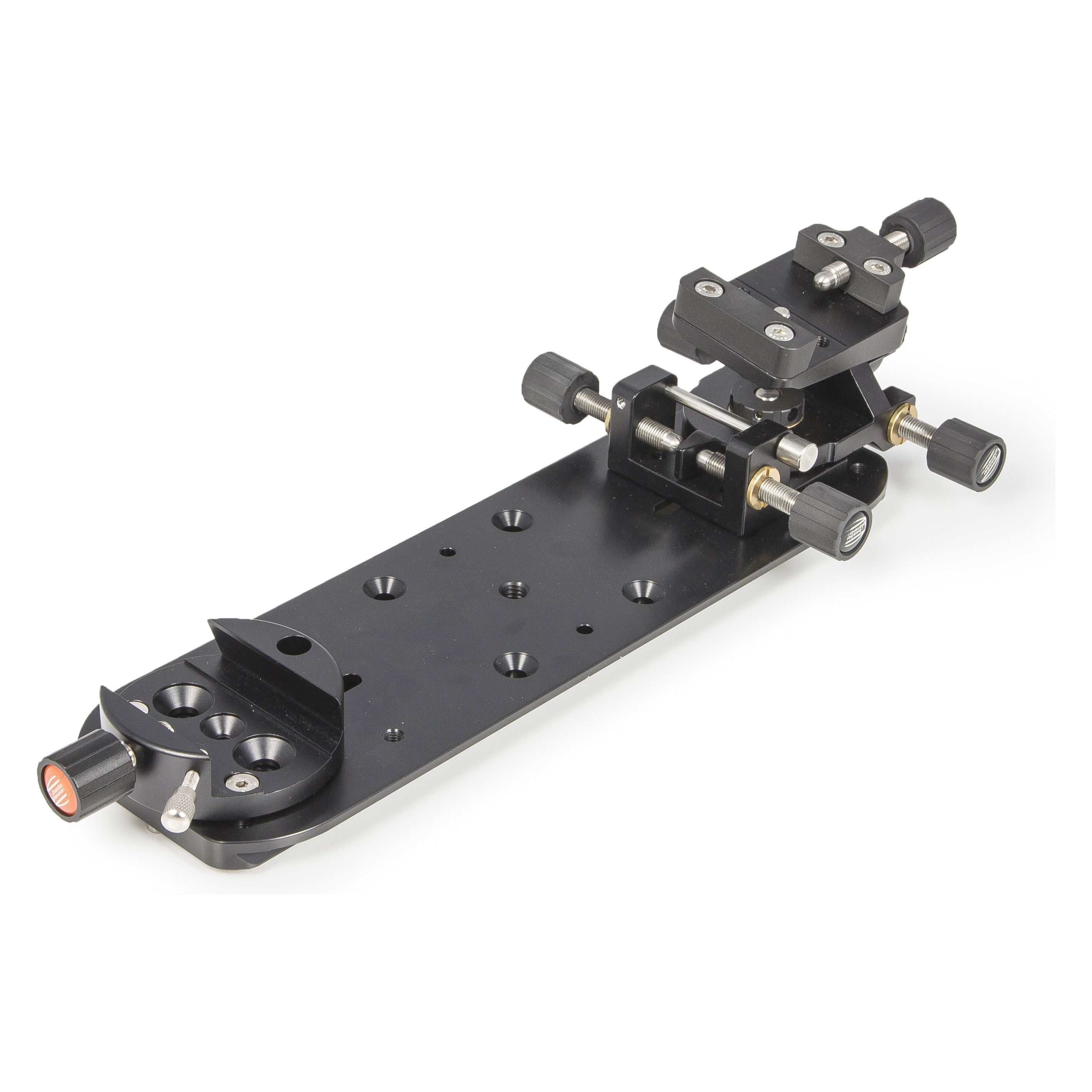

Baader Double-Balancing Plate-Set

• Accepts two OTAs w. "Vixen"(Celestron/SkyWatcher asf.)-style dovetail to be precision aligned in parallel, mounted onto one balancing 3" dovetail plate
• Overall dovetail plate length 300mm /plate width 100 mm
• As an alternative to using the 3" dovetail, this plate may also be center-mounted with four screws onto 10Micron (GM2000) and many Astro Physics asf. Dec-heads - that use the standard distance 3.2" hole pattern. A 3/8" photo- thread is sitting straight in the middle of the plate, to allow the plate to mount onto a rigid photo-tripod as well.
• Plate surface predrilled for Baader clamps: V-clamp #2451530; PanEQ #2451566 and #2451525 as well as Stronghold Tangent Assembly #2450310
• The plate fits on all 3" (Losmandy-Norm) dovetail clamps. it likewise fastens onto AP plates #140 1128 (13") as well as #140 1129 (16") to mount Baader guidescope rings parallel to the main OTA and also in this way use two telescopes side by side
• Plate alternatively can serve as 3" mounting plate to hold Baader guidescope rings size #1 & #2,

    Scope of supply:

•  #1500330 - Double mounting plate
•  #2451530 - V-Clamp, 70mm
•  #2450310S - Stronghold Tangent assembly (black)
