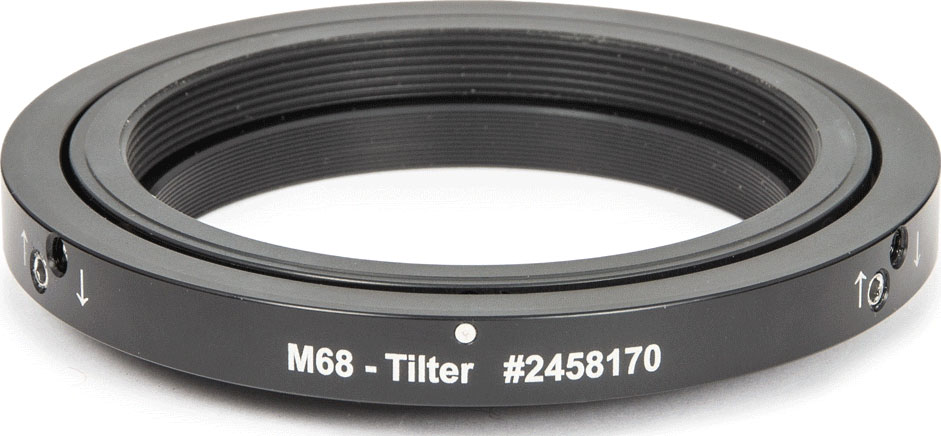

Baader M68 Tilter

Baader M68 Tilter
  Zoom
Our Price:  £219.00(Inc. 20% VAT)
+

Model:  2458170
Brand:  Baader Planetarium

Availability:



Special order item, Please contact us for an ETA



  • M68 tilter to produce an optimally flattened field of view
  • Compatible with the entire M68 System
  • Allows 0-1° tilt – to compensate for misalignments in the image field
  • 9.5 – 10.25 mm optical length

The Baader M68 Tilter is a new addition to the M68 Adaptor family. Its purpose is to allow easy adjustment of an imaging sensor in order to compensate for image plane tilt. The Tilter’s path length is 9.50mm when fully in and extends to 10.25mm when fully out with up to 1° of tilt compensation. The M68 Tilter can be used with all of the M68 system.

The image below shows the M68 Tilter in a configuration with Baader M68 extension tubes and their UFC Base Filter Chamber.

Specifications:

MANUFACTURER: Baader Planetarium
SKU (#): 2458170
EAN CODE: 4047825045560
NET WEIGHT (KG): 0.083
OPTICAL LENGTH (MM): 9,50-10,25 mm
INNER CONNECTION (LENS SIDED): Thread, M68 x 1
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED): Thread, M68 x 1
COMPATIBLE BRANDS: Baader Planetarium
TYPE OF ADAPTER: Extension
