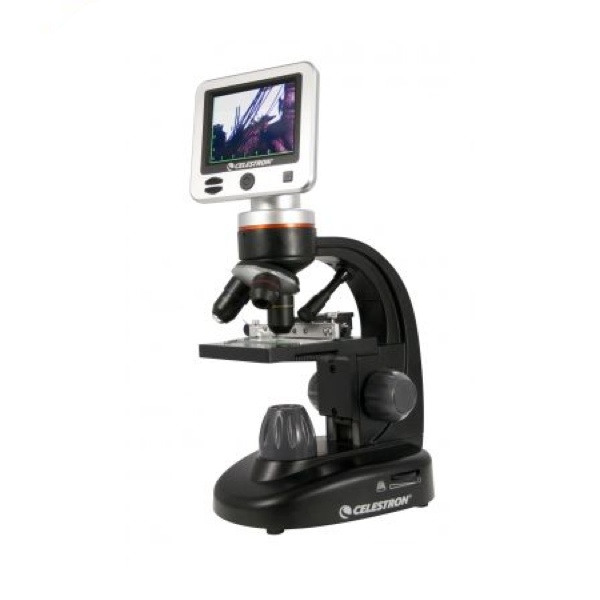

Celestron LCD Digital Microscope II

(Inc. 20% VAT)
In stock, Shipped in 1-2 working days

The LCD Digital Microscope II is a professional biological microscope at an affordable price. Change powers from 40x to 100x to 400x (up to 1600x with digital zoon) with a turn of the 3-position rotating lens turret. The large 3.5" Color LCD screen display rotates 180 degrees so you can easily share your viewing with others. For an even bigger audience, you can use the TV output to display on a television or projector. With a bult-in true 5MP digital camera and included 1GB SD card, it's never been easier to capture stunning images and transfer them to your PC.

LCD Digital Microscope II General Features

  • Professional level biological microscope
  • True 5MP sensor enables you to capture and save high-resolution images and 30fps SD video of your specimen
  • Fully adjustable mechanical stage for easy specimen slide movement
  • 180-degree rotating head for easy sharing of images
  • Full color 3.5" TFT LCD screen with onboard software
  • 3 position rotating objective lens turret with lens powers of 4x, 10x, and 40x
  • Sensor acts as 10x eyepiece lens, yielding 40x, 100x, and 400x powers
  • 4x digital zoom bumps power range up to 1600x
  • Measuring reticle for comparing specimen sizes
  • 1GB SD card included so you can save up to 620 high-resolution images
  • TV output for display on large monitors for classroom or lab environment



  • Dimensions : 170mm x 140mm x 330mm (6.7” x 5.5” x 13”)
  • Weight : 56 oz.(1600 grams)
  • Stage : Fully mechanical stage with metal clips
  • Stage Dimensions : 103.5” x 3.5” (88mm x 88mm)
  • Digital Camera : 5MP CMOS Sensor, 10x magnification in lieu of eyepiece
  • Magnification : 40x, 100x, and 400x (1600x with digital zoom)
  • LCD Monitor : 3.5” (90 mm) with 4x Digital Zoom — High definition touch digital TFT display
  • Resolution : 320 x 240 pixels, Contrast ratio — 300,Color
  • Support : 262K colors, Brightness/Luminance — 430cd/m2
  • Focuser : Smooth, single motion
  • Objectives : Achromatic 4x, 10X, 40X
  • Memory : SD card slot with 1G SD card included (Supports up to 32G)
  • USB Cable : 1.5m long, 2.0 USB
  • Filter Wheel : 6 Position-  Red, Blue, Green and 1, 3, 6mm aperture
  • Nosepiece : 3 position with click stop
  • Illuminators : Upper and Lower, Built in adjustable LED- DC 5V, 2W~3W
  • Condenser : N.A. 0.65
  • AC Adapter : Input Universal 100 to 240Volt 50/60HZ
What's in the Box

LCD Digital Microscope II Manual
