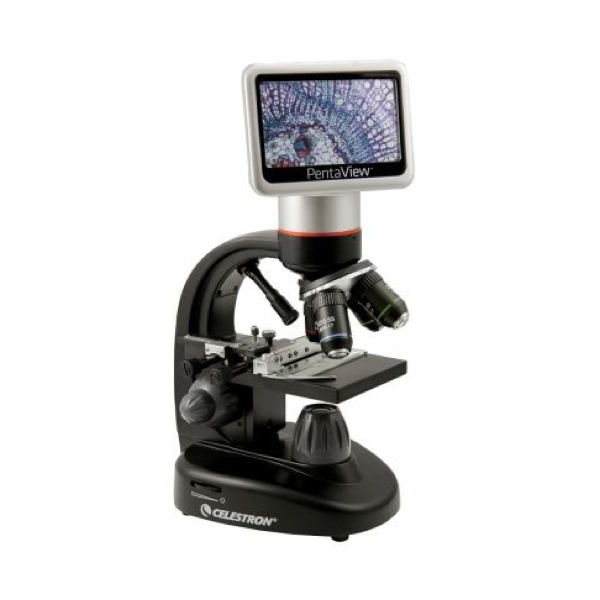

Celestron PENTAVIEW LCD Digital Microscope

The professional-level Celestron PentaView LCD Digital Microscope is a touchscreen LCD microscope with advanced features at a reasonable price. PentaView features 5 fully achromatic lens objectives, a mechanical stage, a 4.3” TFT full color touch screen, 5 MP CMOS sensor, and a 4 GB SD card for storing your photos and videos. Taking high-resolution images and video of specimen slides has never been easier.

The LCD screen rotates 180 degrees so you can easily share your viewing with others.  For an even bigger audience, use the TV output to display on a television or projector. With magnification from 40 to 600x (2400x with digital zoom), PentaView is ideal for viewing a range of cellular specimens on slides.

Great for the discriminating professional or serious hobbyist, the LCD Digital Microscope with touchscreen is an excellent tool for labs, schools, scientific research, and more.

Coin and stamp collectors or those seeking lower magnification to observe large objects (2mm and larger), please see our popular low-power digital microscopes:

• Mini Handheld Digital Microscope
• Deluxe Handheld Digital Microscope
• Handheld Digital Microscope Pro
• Portable LCD Digital Microscope
• Infiview LCD Digital Microscope
• Cosmos 5 MP LCD Desktop Digital Microscope
• Cosmos 3 MP LCD Handheld Digital Microscope

Features:

• 40x to 600x magnification, up to 2400x with digital zoom
• 4.3" LCD touchscreen
• 5 MP CMOS built-in digital camera
• 5 fully achromatic objective lenses: 4x, 10x, 20x, 40x, 60x
• Top & bottom adjustable LED illumination
• 180° rotatable LCD screen
• Fully mechanical stage
• Coarse and fine focus knobs
• Filter wheel/diaphragm
• AV/TV output with cable
• Optional battery mode
• SD card slot with 4 GB SD card included (Supports up to 32 GB)
• Universal AC adapter with multi-plugs for international usage
• Accessories included: 10 prepared slides, hard carrying case, dust cover, touch pen, USB cable, AV cable

Specifications:

• Imaging Sensor: 5.0 MP CMOS, 10x magnification in lieu of eyepiece
• AC Adapter: Input universal 100 to 240 volt, 50/60 Hz, 4 plug multi-country
• USB Connection: 2.0, 1.5 m cable included
• Magnification (low power): 40 x
• Magnification (high power): 600 (2400 with digital zoom) x
• Continuous Video (VGA): Yes, 30 fps
• Batteries: 4 AA (user-supplied)
• Objective Nosepiece: 4 position with click stop
• Objective Lense Diameter: 5 achromatic - 4x, 10x, 20x, 40x, 60x
• Condenser Lens: N.A. 0.65
• Illumination: Upper and lower, built-in adjustable LEDs
• Stage: Fully mechanical with metal clips, 3.5 in x 3.5 in (88 mm x 88 mm)
• Dimensions: 178 mm x 140 mm x 330 mm (7 in x 5.5 in x 13 in)
• Weight: 67 oz, 1.9 kg
• LCD Screen: High definition touch, 320 x 240 pixels resolution, 3.5 in (90 mm) with 4x digital zoom, 262K colors, rotates 180°
• Fine Focus: Yes
• Filter Wheel: 6 position - red, blue, green, 1 mm, 3 mm, 6 mm aperture
• Course Focuser: Yes
