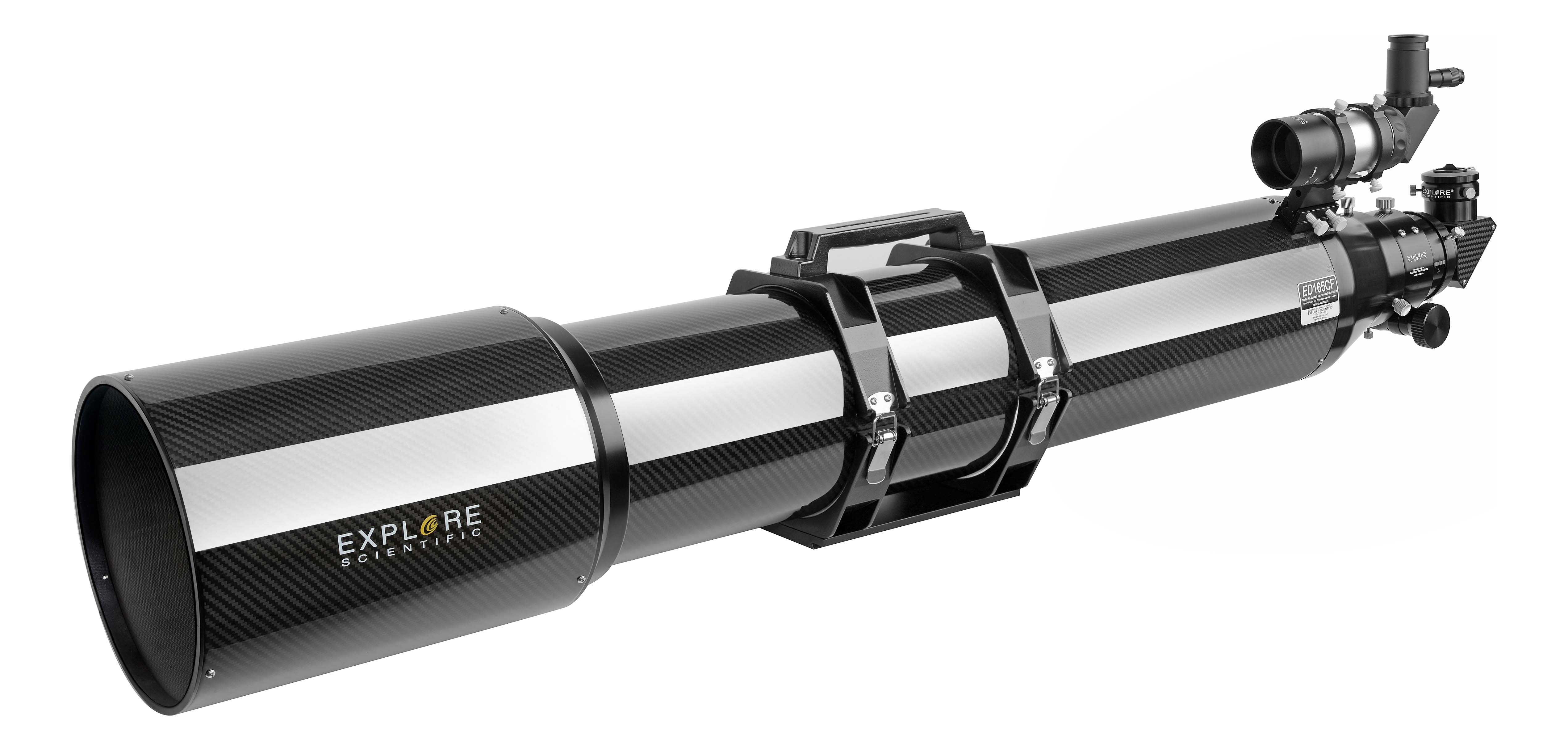

Explore Scientific ED 165mm f/7 FPL-53 Apochromatic Triplet Refractor Telescope

£9,890.00
(Inc. 20% VAT)
Special order item, Please contact us for an ETA
+
Model
112165
Brand
Explore Scientific
Description

The Explore Scientific ED APO 165mm f/7 Carbon FPL-53 3" is the latest development in the line of Explore Scientific's excellent Apochromatic range of refractors.  This 6.5-inch instrument offers superb colour correction and pin-sharp views and images, due to its triplet design lens, which features one FPL-53 ED element, offering excellent spherical aberration control and colour correction with a guaranteed polystrehl value in the high 97%.

No one telescope "does it all", but a 6-inch Apo certainly covers most of the bases required of a versatile large observer's telescope.  It will show significant improvement over a 5-inch class refractor in terms of light gathering power and resolution, making it a better choice of instrument for visual observation of lunar, planetary and deep sky targets.  Not only that, but this telescope is an excellent astrograph, with a medium-length focal ratio, which delivers excellent deep sky images (which can be reduced in field size and equivalent focal length yet further with the use of the Explore Scientific 0.7x Focal Reducer-Corrector) and can also be used to impressive extent for imaging of the planets and the Moon (we'd recommend the use of one of the excellent Explore Scientific Focal Extender Barlow for solar system imaging).

While not as lightweight as the smaller triplets in the Explore Scientific range, at 13.2kgs weight, the Explore Scientific ED APO 165mm f/7 Carbon FPL-53 3" can be mounted to equatorial mounts in the EQ6 class and upward (though we'd recommend the minimum of the Explore Scientific G11 PMC-Eight GOTO Mount or Skywatcher NEQ6/EQ6-R Pro Synscan for imaging purposes).

This excellent telescope is the currently largest representative of a new line of apochromatic refractors by EXPLORE SCIENTIFIC. The completely new designed optics contains the special glas FPL-53, and delivers stunning sharpness and contrast without any trace of color abberation. For a apochromatic refractor of this size the focal ratio is relatively fast - the f/7 optics is thus also very suitable for astrophotography. For this reason we added one of the world’s top focusers - the high precision and the famed rigidity of the 3" Feathertouch focuser make focusing an easy task - and unwanted movements of the sensor during exposure do not happen. The result of this combination of outstanding optics, top level mechanics and the relatively low weight is a extremely versatile telescope that wil not only give images of the moon and planets that are perfect. It will also exceed the expectations of even the most demanding amateur astronomers in the field of astrophotography.

FEATURES

  • excellent color correction
  • Retractable dewshield
  • Lightweight carbon fiber construction

SCOPE OF DELIVERY

  • 165mm tube CF (165/1155mm (6.5" f/7.0)
  • FTF3235B-A Feather Touch® True 3.0" Dia Dual Speed Focuser
  • 2” Diagonal mirror with 99% coating
  • 06-20160 90° illuminated finderscope with true oriented view
  • Tube rings with handle
  • 3“ Losmandy-type dovetail
  • DeLuxe Flight case with wheels
Specifications
FIELD OF APPLICATION
Field of application
  • Deep Sky Observation
  • Lunar observation
  • Deep Sky Photography
  • Lunar photography
  • Planetary observation
  • Planetary photography
FOCUS GROUP
Focus Group
  • Advanced Amateurs
  • Visual enthusiasts
  • Specialists and Research
PRODUCT FAMILY
Product Family Refractor telescope
OPTICAL SPECIFICATIONS
Optical design Apochomatic Refractor
Magnification from 30
Magnification up to 330
ED glass
Mirror/Lens diam. 165 mm
Focal length 1155 mm
Aperture ratio 7
ELECTRONICS, HARDWARE & SOFTWARE
Batteries included
GENERAL TECHNICAL DATA
Material OTA Carbon fiber
Focusing system FTF3235B-A Feather Touch® True 3.0" Dia Dual Speed
Colour Carbon Fiber
Mount Type Optics without Mount
Extended warranty 10 years
DIMENSIONS & WEIGHTS
Total length 1020 mm
Total width 200 mm
Total height 200 mm
Net weight OTA (incl. accessories) 13.2 kg
Total length 135 cm
Total width 20 cm
Total height 20 cm
Tube diameter 178 mm
