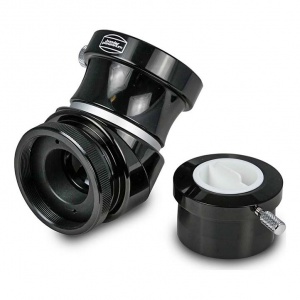

Baader 2" Amici Erecting Prism 45° With 2" SC Thread And 2"/1¼"-reducer
MANUFACTURER Baader Planetarium
SKU (#) 2956151
NET WEIGHT (KG) 0.47
OPTICAL DESIGN Erecting Prism
INNER CONNECTION (LENS SIDED) Thread, 2" (50,8mm)
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Clamp, 1¼", 2" (50,8mm)
REFLECTION SURFACE Total reflection
AR-COATING Multi-Coated (MC)
IMAGE ORIENTATION Erect image, Non-reversed
OPTICAL LENGTH (MM) 121mm with 2" barrel; with 1,25"-reducer additional 10mm
CLAMPING SYSTEM Dovetail clamp
DEFLECTION ANGLE 45°
INNER DIAMETER / CLEAR APERTURE (MM) 26
