TS-Optics Dovetail Mounting Bar Vixen style - 100 mm slotted hole and 1/4" screw

TS-Optics Dovetail Mounting Bar Vixen style - 100 mm slotted hole and 1/4'' screw
  Zoom
Our Price:  £30.00(Inc. 20% VAT)
+

Model:  PSFotoDel
Brand:  Teleskop Service

Availability



In stock, Shipped in 1-2 working days

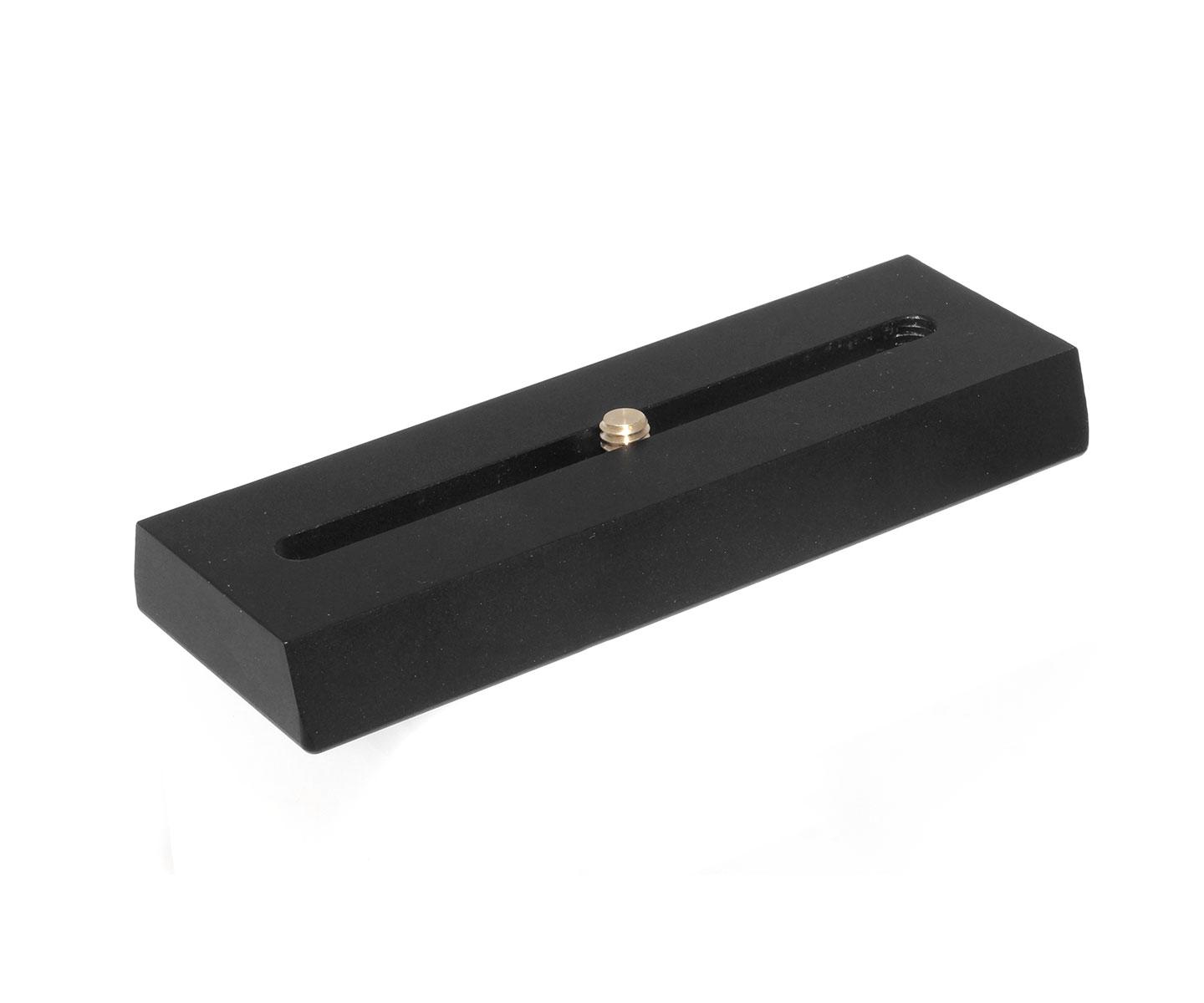

TS dovetail plate to adapt spotting scopes and cameras to mounts with GP level adaption. This solid dovetail plate allows you to attach heavy cameras, spotting scopes, telephoto lenses ... to an astronomical mount. One 1/4" photo screw is included.

  • Lenght of the dovetal bar - 120 mm
  • Lenght of the elongated hole - 100 mm
  • The hole accepts 1/4" photo screws and M6 screws

The TS Optics PSFOTODEL dovetail plate allows you to attach heavy cameras, spotting scopes, telephoto lenses ... to an astronomical mount. One screw is included.

The PS Foto Deluxe is a particularly sturdy dovetail plate. The elongated hole offers a great versatility, for instance you can also use it for attaching a telescope with a pair of tube rings - very helpful for short tube telescopes.

Practical tip from Teleskop-Service

Many spotting scopes and telescopes have an adaptation bracket with more then one camera tripod thread. The elongated hole allows you to use more than only one screw to prevent the instrument from unscrewing itself. It allows to use 1/4" photo screws (look to suggested accessories) or metric M6 screws.

The dovetail plate is compatible with the following mounts (among others):

  • Vixen: GP2, GPD2, Sphinx ...
  • Celestron: Advanced Mount, AS-VX ...
  • Skywatcher: EQ3, EQ5, HEQ5 ...
  • Meade: LXD and LX Mounts
  • Dovetail Bar Holders: Prismenklemme S, DX ... and similar

In the box:

  • Dovetail PSFotoDel
  • 1/4" photo screw
Length:    120 mm
Height:    15 mm
Upper width:    36 mm
Lower width:    43.5 mm
Length of slotted hole:    100 mm
Width of slotted hole:    20 mm
Depth of slottte hole:    15 mm
Useful thread length:    5 mm
Weight:    140 g
Fits following mounts:    all mounts with GP level
