Celestron’s engineering team applied their years of experience designing German Equatorial mounts to the all-new CGX, a culmination of all the advancements made to our technologies. By refocusing our design efforts and anticipating the needs of today’s visual observers and astroimagers, Celestron has achieved a new level of "state-of-the-art" with the all new CGX German equatorial mount. Compact. Solid. Innovative. Totally redesigned with a lower profile, CGX is sturdier and more rigid than its predecessors with several new innovative features and new control software ideally suited for automation and remote operation.
All-new design. Sturdier and more rigid with quicker dampening time
Increased load capacity to 55 lbs.
Improved motors provide more torque, better slewing and tracking under heavy loads

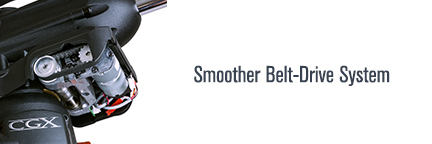

Heavy Duty belt-drive system minimizes backlash while providing smooth motor operation under heavy loads
Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
Internal cabling for worry-free remote operation. Power input and accessory ports remain stationary while the mount slews to avoid snags
Internal optical sensors on both axes for simple and safe remote operation
Internal hard stops for both axes prevents cable tension and tripod strike
Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe
Brand new control software developed in conjunction with PlaneWave Instruments for professional level control operation and imaging
Software includes multi-point mount modeling for extremely precise pointing accuracy and many more additional features for remote astroimaging
Wider tripod stance for improved stability
Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3º-65º latitude range

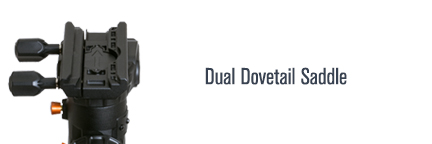

Dual-fit CG-5/Vixen and CGE/Losmandy dovetail saddle
IMPROVED TRIPOD INCLUDES:
2" steel legs with height index marks for quick leveling
"Jack of all trays" can hold three 1.25" eyepieces, two 2" eyepieces, your smartphone, or other accessories
+20º of additional tracking past the meridian on either side
Tripod legs can be collapsed with accessory tray installed for faster setup and transport
IMPROVED ERGONOMICS:
Two handles for easy pickup and transport
All-new ergonomically designed dovetail clamping knobs

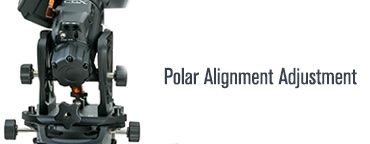

Innovative and improved polar alignment adjustment system
All-new ergonomic latitude adjuster for smooth and easy adjustment under full loads
Two AUX accessory ports to support wireless/WiFi alignment and operation with StarSense AutoAlign and SkyPortal WiFi Module accessories (sold separately)
USB 2.0 port, used to connect directly to PC with included software
Autoguider port
PPEC ready
Threaded 12VDC power input barrel connector
Internal Real Time Clock (keeps time and site information saved)
